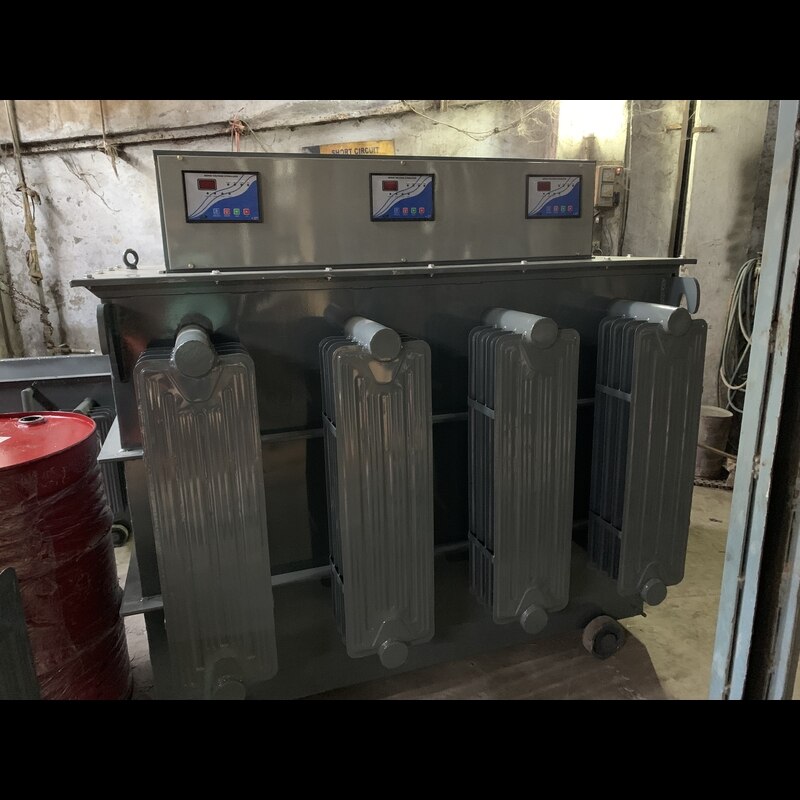

Servo Voltage Stabilizers

Business Type Manufacturer, Exporter, Supplier, Retailer

Type Servo Voltage Stabilizer

Feature Auto Cut, Stable Performance, Works In Low Voltage

Frequency 50hz

Product Details

Automatic Grade Automatic

Warranty 1year

Type Single Phase 3Ø Balance Load 3Ø Unbalance Load

Input Voltage Range 160 V- 260 V AC 300 V - 460 V AC

KVA Rating

Capacity 0.5, 1, 2, 3.15, 5, 8, 10, 16, 20, 25, 31, 5, 40, 50, 100, 125, 150, 200, 300 &350 KVA 3, 5, 10, 15, 20, 25, 30, 40, 50, 80, 100, 125, 150, 200, 300, 400, 500, 600, 1000 upto 2000 KVA

Output Voltage

Rated Operating Frequency

225V - 230V AC Settable

50 HZ 400V - 415V AC Settable

50 HZ

Metering 72 mm to 100 mm Dial Accuracy 1.5 Voltmeter with Selector switch to indicate Input and output Voltage.

Input / Output Connection

Upto KVA

Over 2 KVA 15 Amps. Plug and socket

Terminal for input & output Connections

Indicator Mains 'on' pilot lamp on front panel, Low and High limit indicator of Dimmer on front panel. Mains pilot lamp on each phase low and High limit indicator of Dimmer on front panel. Oil indicator will there

Manual Control Provision for manual control of output. Provision for manual control of output on each phase.

Cooling

Air Cooling

Oil Cooling 0.5 - 10 KVA

15 KVA - 350 KVA 2.5 - 30 KVA

40 KVA - 20000 KVA

Output Voltage

Regulation ± 1% ± 1%

Rate of Correction 20 Volts / Second 30 Volts / Second

Efficiency More than 90%

Duty Cycle .............................................................................100%.....................................................................

Specifications IS : 9815 (Part 1) / 1994 (Reaffirmed 1999)
